Simplicity 4-Channel Dosing Pump
VASCA Simplicity 4-Channel Dosing Pump Wholesale

Alternative Views:

Wholesale Price (Members Only)

Stock Status:In Stock

Product Code: ATI16002

Description

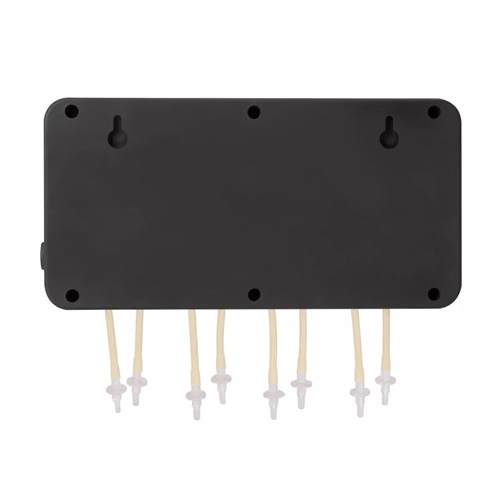

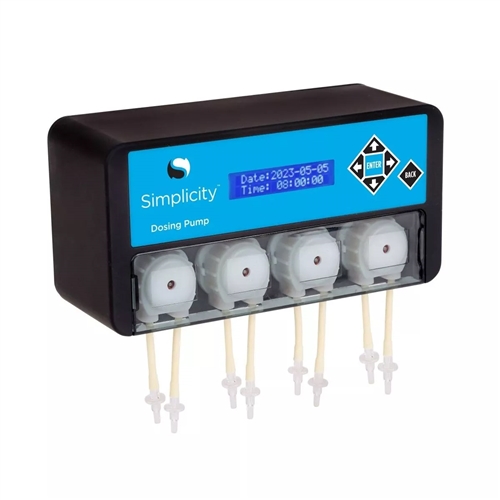

The Simplicity Dosing Pump is an accurate, effective, and affordable liquid dosing solution. The four dosing heads offer high-precision liquid dosing combined with easy-to-use integrated controls. The compact, space-saving design can be flush mounted to a wall or placed on a shelf. The included pump head labels make identifying dosing solutions easy.

The Simplicity 4-Head Dosing Pump is also compatible with the Simplicity 2L Modular Dosing Container and the Simplicity 5L Modular Dosing Container.

Specifications:
  • 7.9” L x 3.0” W x 4.0” H
  • Power Consumption: 7.5W
  • Power Input: 12V DC
  • Power Cord Length: 5 ft
  • 3-year manufacturer prorated warranty
Pump Specifications:
  • Control Interval: From once per hour to once every 30 days
  • Flow Rate: 50 mL per minute
  • Maximum Head Pressure: 5 ft
  • Accuracy: +/- 0.1 mL per 10 mL
  • Dosing Volume: From 1 mL up to 9999 mL
What's in the Box?
  • Simplicity 4-Head Dosing Pump
  • Power Supply
  • Pump Head Labels
  • Measuring Cup
  • Check Valves (5x)
  • Mounting Screws (2x)
  • Spare Pump Head
  • Mounting Template
Includes:
  • F1 Dosing Pump
  • Graduated cylinder
  • Power adapter - Up to 4 - F1 Pumps
  • PVC Tubing: ID*OD 3*5mm
